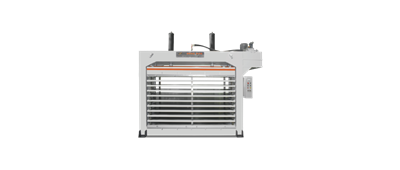

NCM-98 hot press bonding machine

NCM-98

Hot Press Gluing Machine

Equipment

Process

Consulting

E-MAIL

Product advantage

The Machine Function

Used for Hot Press 8 Gluing for Security Door Or Fireproof Door.(6 layers, 8 layers, 10 layers, 12 layers as customized)

Production Proceed

Feeding→Locating→Gluing→0ut
Feeding→Locating→Flanging→0ut

Technical parameters

Model	NCM-98
Gluing Machine	10PIY
Overall Dimensions Of Host Machine	2900 × 1400 x 2810mm
Dimensions Of Pressure Plate	42 ×1000 x 2200mm
Interlayer Space	110mm(can be customized)
Stroke 0f Oil Cylinder	360mm(can be customized)
Working Pressure	(6-10)T
Working Pressure Of Hydraulic System	3okg/cm²
Temperature Of Pressure Plate	85℃
Time Of Pressing	15-10minutes.
Hest Conduction Meson	Hot water, steam, heat conduction oil
Wearing Part	Sealing Ring
Main Power	2 Sets Oil cylinder
