NCM-JH5 fully automatic hot press bonding machine
NCM-JH-5

Automatic Hot Press Gluing Machine

Equipment

Process

Consulting
E-MAIL

NCMCO@163.com

Product advantage
The Machine Function
The gluing machine composed of several hot pressing plates for pressing and heating each group of pressing plates. It is the most widely used door gluing engine. Its full name is itelligent flow hot - press gluing machine. It is to put the door slab into the filer with the plate loading machine into the multi-layer hot press, heating and pressure at the same time, the slab pressing the finished door fan, according to the mode of operation is divided into two types of periodic and continuous, the commonly used in China is the periodic muli-layer hot press. The hot press is composed of three parts: the hot press body, the control drive part and the heating system. Itelligent single-piece flow hot pressing gluing machine, including feeding roller conveying, guide conveying door device, hot pressing gluing main engine, positioning conveying edge holding device and out conveying device.


Production Proceed
Conveying→gluing→blank pressing


Good Stability
Multlayer large plane steel plate supeposition way of gluing. sabilily will be partir. ularly good. DO not wory about the defomatin of the door gluing, it is the best choice of hol gluing.


Good Heating Performance
Each layer of large plane sleel mesh ho water crculation with extemnal insulation layer, 50 that the heat uniform and stable efet is good.


Low Energy Consumption
Al drives adopt frequency conversion, rsistance wie heatig, low price, low cost and widely used.


Gl And Edge Performance
Door enterprises fit sprayed and glued, then door plate was hot pessing glued,and then use hyraulic overall edge pressing. Edge pressing in steel when it has temperalure, because it can reduces paint surface damage or breakage.


Easy Clean/ Maintain
Each layer ol plywood, the belly inletl 304 miror sainles seel high wearrsistance, And do not need to spend too much energy to maintain or dean the adhesive residue.


High Cost Performance
As the raw material of the multilayer hot pressing gluing machine adopts steel plate structure, it has a large weight dfference compared with the material used in the rller tpe gluing machine on the market.


Simple installation
Adhesion/thermal energy integrated machine, istallation does∩ot need to hit the kee, as long as the leveling is good. Generaly speaking, a few hours to debug the equipment, mobile position is convenient and fast.

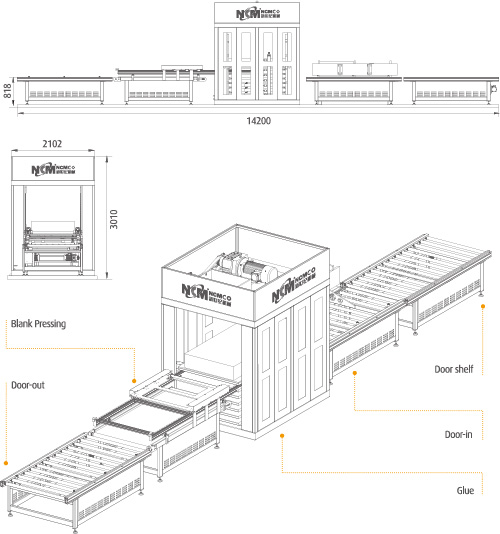

Process Chart

Technical parameters
Model NM-JH-5
Eeticall heated water boiler CLHS0.12-85/65
Eeticall heated water boiler 2400*1100*50mm
The layer number of work 6Floor
Into the board way portrait
From the largest 200mm
Locating piece 40-70mm(customer-defined)
The work efciency 60s/Floor
power 11Kw
power MW0.12
Minimum seiction for gluing 1200*300*50mm
Pressure plate specification 45*1350*2500mm
Gravity pressure 5T
Slot way above
The operating system Manual / Auto
Flatness of laminated plates Equal to less than 0.05mm/square
